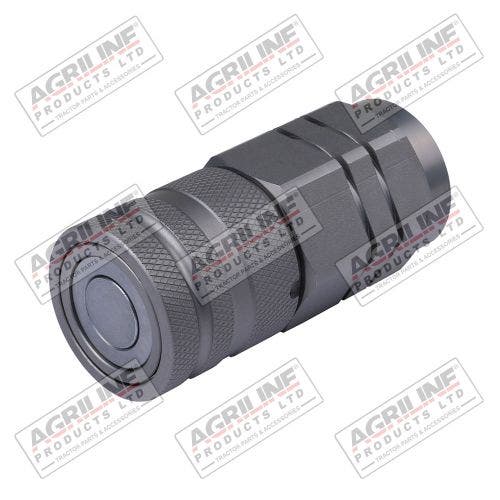

Flat Faced Hydraulic Coupling - Female - Body Size 1/2”
Part No.
Product Details
57019
Product Details
Flat Faced Hydraulic Coupling - Female - Body Size 1/2" - Thread Size 1/2" BSPP
This series of flat face couplings are known for their leak free performance across multiple applications and are the preferred choice for many global OEMs.
Body Size: 1/2"
Thread: 1/2" BSPP
D1: 38mm / 1.5"
L1: 83.8mm / 3.30"
A/F: 36mm / 1.42"
APPLICATIONS
• High pressure pulse applications
• Leak free environments
• Construction plant
• Mobile equipment
• General industrial
• Agricultural
• Skid steer loaders
FEATURES
• Safety locking sleeve fitted as standard to prevent accidental disconnection
• Flat faces are easily wiped clean
• Minimal inclusion of air and contaminants during connection
• Flat face design prevents fluid loss during disconnection
• Bidirectional flow
SPECIFICATIONS
• Carbon steel with zinc nickel plating (1200 hours with no red rust in salt spray tests)
• Operating temperatures -40°C (-40°F) to 106°C (223°F)
• Couplings have been tested to the ISO 18869 Standard
PERFORMANCE CHARACTERISTICS
• Maximum Working Pressure (Coupled) - 350 bar (Flow in Litres Per Minute) - 5075 PSI (Flow in Gallons Per Minute)
• Burst Pressure (Coupled) - 1400 bar (Flow in Litres Per Minute) - 20300 PSI (Flow in Gallons Per Minute)
• Rated Flow - 45 bar (Flow in Litres Per Minute) - 12 PSI (Flow in Gallons Per Minute)
