Link Arm Models 35 3-Cylinder, 35 Petrol, 835, Dexta, FE35 4cyl, FE35 Petrol, FF30, Super Dexta, TE20, TEA20, TED20, TEF20, TO20
Part No.
Product Details
4009
Product Details

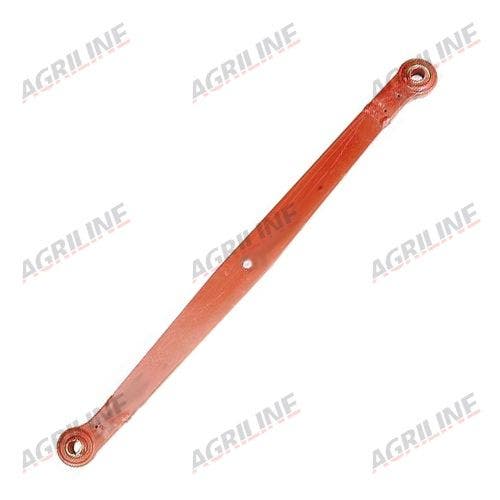

4009 Link Arm replaces Massey Ferguson OEMs 8501, 8502 suitable for Ferguson and Massey Ferguson tractors such as TEA20, TED20, TEF20, FE35 4cyl, 35 3-Cylinder as well as Fordson tractors such as Dexta, Super Dexta and more.
Single Hole - Used As Both Left And Right Hand Link Arm
Category: 1.
Length: 810mm.
Thickness: 13mm.
Width: 63mm.
Centre Hole Diameter: 17mm.
Number of Holes: 1.
Three-point linkage is a standardised system to attach implements to tractors. An A-shaped triangle of movable arms is attached to the hydraulic system which allows the arms to be lifted, lowered, and tilted. The lower link arms or lift arms are an important part of the linkage system as they are the parts designed to lift and lower the implement attached to them. Worn or broken link arms will stop you from being able to attach or use any implements with your tractor.
Replacing your worn or broken link arms on your three-point linkage system will give you the ability to attach and use implements with your tractor. They will also ensure that you no longer need to worry about old and worn link arms breaking whilst you lift or use implements.
